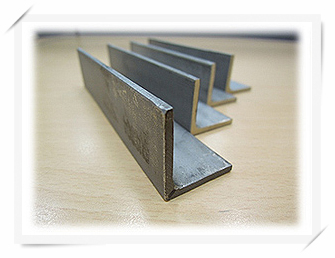

，用于工程结构、工业工具、机械零件及建筑上用于结构等等，其制成有分为冷轧切板后折至而成，热轧抽至而成，其中差异在于转折处的角度，冷轧比较圆滑，热轧则有直角90度的产生，建锠集团目前可以提供冷轧100%台湾制造外，也可提供冷、热轧中国制造之材料，方便客户采购。
| 产品名称：弯制角钢 尺寸制程能力： | 厚度(mm) | 宽度(mm) | 长度(mm) |
|---|---|---|---|
| 3-10 | 25-100 | 最大6000 |
nbsp;
| Surface Finish | Definition | Application |
| No.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Building construction. |
nbsp;
| WIDTH | THICKNESS | |||||||
|---|---|---|---|---|---|---|---|---|
| 25 X 25MM (1#8243;) |
3 MM(1/8#8243;) | 4MM(4/25#8243;) | 5MM（3/16”） | |||||
| 30 X 30MM (1-1/4#8243;) |
3 | 4 | 5 | 6MM(1/4#8243;) | ||||
| 40 X 40MM (1-1/2#8243;) |
3 | 4 | 5 | 6 | 7MM(7/25#8243;) | |||
| 50 X 50MM (2#8243;) |
3 | 4 | 5 | 6 | 7 | |||
| 60 X 60MM (2-2/5#8243;) |
4 | 5 | 6 | 7 | 8MM(3/10#8243;) | |||
| 65 X 65MM (2-1/2#8243;) |
5 | 6 | 7 | 8 | 9MM(9/25#8243;) | |||
| 70 X 70MM (2-4/5#8243;) |
5 | 6 | 7 | 8 | 9 | 10MM(2/5#8243;) | ||
| 75 X 75MM (3#8243;) |
6 | 7 | 8 | 9 | 10 | |||
| 80 X 80MM (3-1/5#8243;) |
6 | 7 | 8 | 9 | 10 | |||
| 90 X 90MM (3-1/2#8243;) |
7 | 8 | 9 | 10 | ||||
| 100 X 100MM (4#8243;) |
7 | 8 | 9 | 10 | ||||
| TOLERANCE:ASTM THICKNESS ±5% |
A276/A484M WIDTH ±5% |
